304/316L Seamless Stainless Steel Pipe
ASTM A312 304/304L and 316/316L seamless pipes for general industrial, chemical, and offshore applications. OD 6-630mm, full NDE tested.
Material
304 / 304L / 316 / 316L
OD Range
6 – 630mm (1/4" – 24")
WT Range
0.5 – 60mm (SCH 5S – XXS)
Standard
ASTM A312 / ASME SA-312
Overview

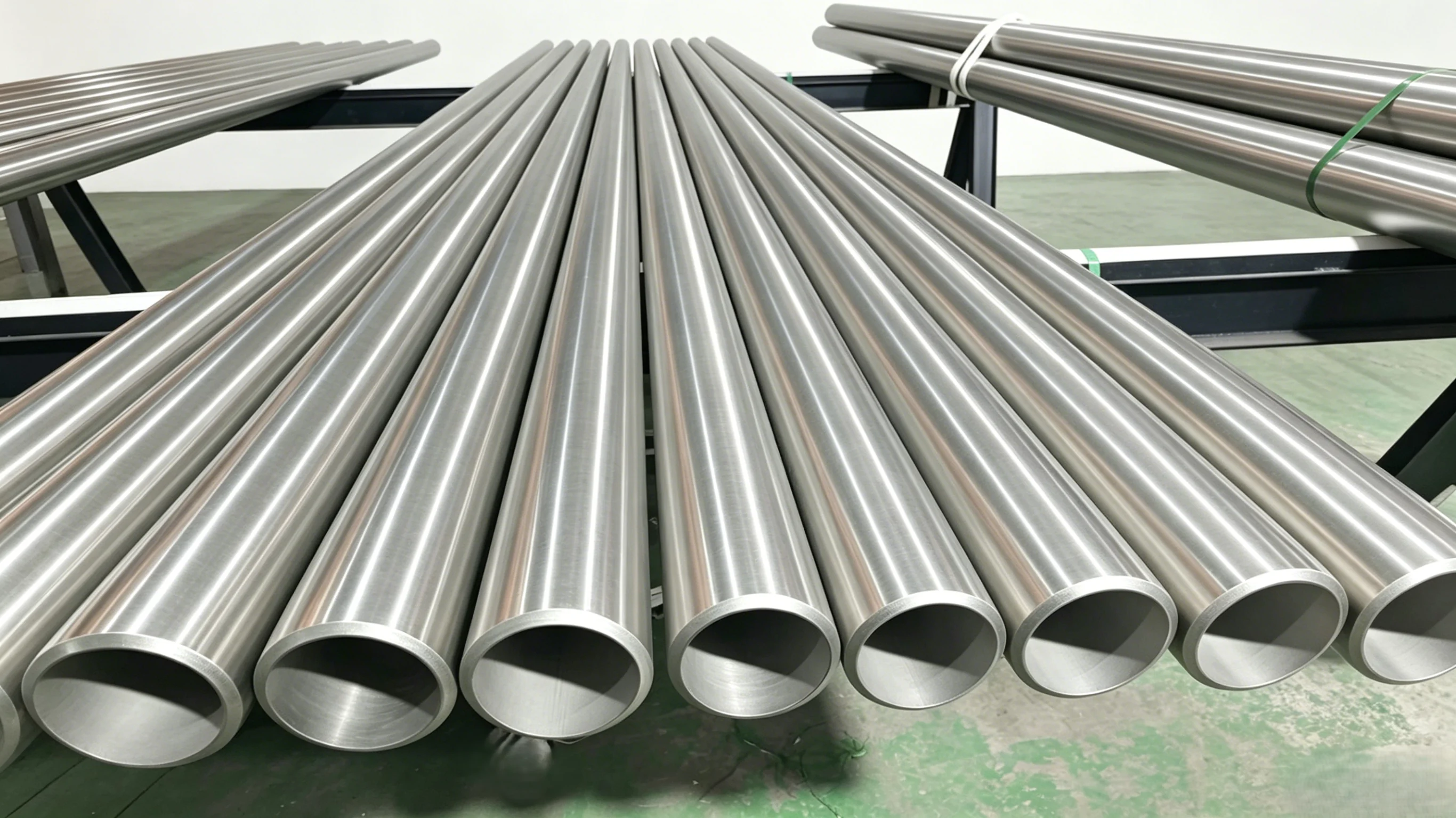

304/304L and 316/316L are the most widely produced seamless pipe grades at TOKO TECH. We maintain extensive inventory in standard sizes and wall thicknesses from SCH 5S to XXS. Our cold-pilgered seamless pipes deliver superior surface finish and dimensional accuracy compared to hot-finished alternatives. 316L's molybdenum addition provides significantly improved pitting resistance for chloride-containing environments.
Specifications
| Specification | Value |
|---|---|
| Material | 304 / 304L / 316 / 316L |
| OD Range | 6 – 630mm (1/4" – 24") |
| WT Range | 0.5 – 60mm (SCH 5S – XXS) |
| Standard | ASTM A312 / ASME SA-312 |
| Process | Cold finished / Hot finished |
| Length | Up to 12m (cut to length available) |
| Testing | 100% Hydrostatic + Eddy Current / UT |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (304/304L) | ≥ 515 MPa (75 ksi) |
| Yield Strength 0.2% (304/304L) | ≥ 205 MPa (30 ksi) |
| Tensile Strength (316/316L) | ≥ 485 MPa (70 ksi) |
| Yield Strength 0.2% (316/316L) | ≥ 170 MPa (25 ksi) |
Typical Applications
Oil & gas process pipingPetrochemical transfer linesWater treatmentFood & beverage processingPharmaceutical clean piping
Material Specifications
View detailed chemical composition, mechanical properties, and corrosion resistance data:
